Custom bike trailer

By , July 4, 2009

DIY bike trailer

I mentioned a couple of months ago that I was looking for a new flatbed trailer to augment my BOB Yak for use in the city.  Armed with my requirements, I headed down to Urbane Cyclist, fully expecting to ride away from the store with a new Burley Flatbed or equivalent. But after considering the options and talking to the staff about my needs, they recommended that I either get a DIY trailer kit from Wike and build my own trailer, or call Wike and get a custom trailer built to my specifications. I opted for the former, and am really happy with the result.

It’s done duty twice so far: its inaugural trip was ably carrying three Rubbermaid totes crammed full with much of the equipment and materials required for the Ward 29 Bikes meeting two weeks ago, and it pulled 80 lb of cat litter home last weekend. It’s big enough to be used for flats of flowers, bags of soil, and many other large or awkward loads that would have overwhelmed or overflowed my Yak.

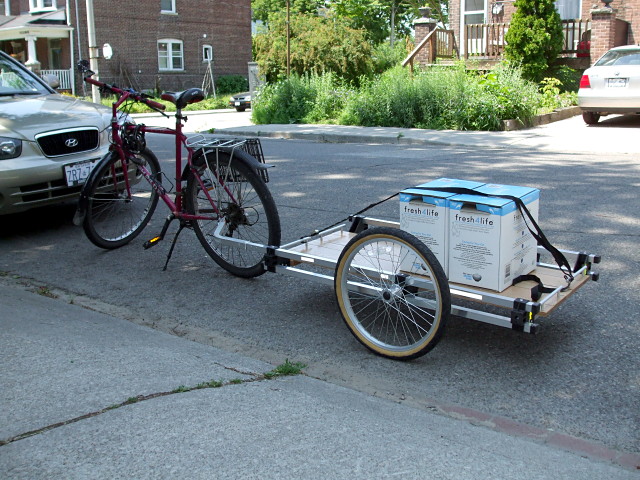

The new trailer easily carries two 40lb boxes of cat litter, twice what I would usually carry on my BOB Yak. I could easily have carried a third without approaching the load limit.

Read below the fold for more details about the construction.

Requirements

My requirements were actually fairly simple: I wanted a large flatbed trailer that could take virtually any odd-sized load that I’d want to throw on it. The two specific applications I had in mind were carting home a rain barrel from one of the city’s Community Environment Days, and hauling a good-sized load to the local Goodwill. A larger trailer would also be handy for many other regular tasks: fetching bags of cat litter, bringing home flowers and plants at the beginning of gardening season, and carrying most large purchases that I’d otherwise have delivered. My BOB Yak can do some of those things, but it’s better suited to long-haul riding rather than carrying random loads of stuff around the city.

All of the flatbeds I saw at Urbane were smaller than I would have liked. The Burley Flatbed was closest, but it still wasn’t quite what I was after. So I ordered the Wike DIY kit the next day and started work.

Design

I considered a few layouts before picking my final size: 2′ x 4′. That’s big enough to hold three of those ubiquitous Rubbermaid Roughneck totes. I’d originally hoped for a trailer big enough to hold four totes, but it would have been huge and far less practical for smaller loads.

Materials

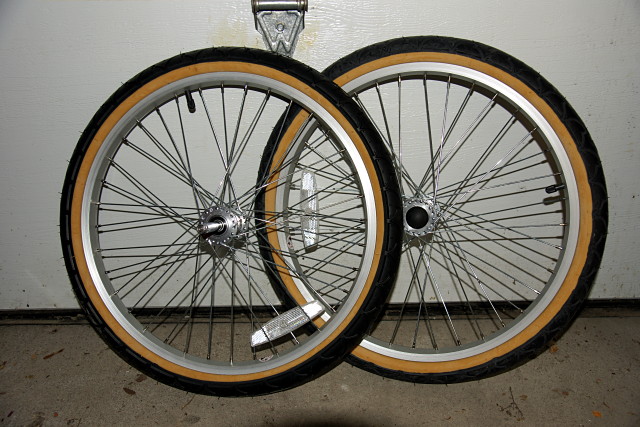

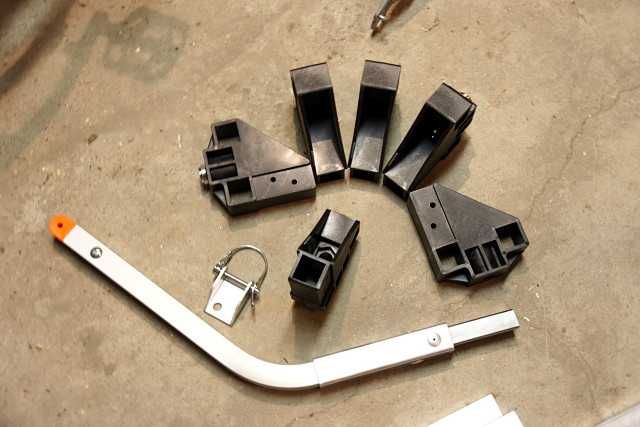

In addition to the Wike kit, I used the following materials:

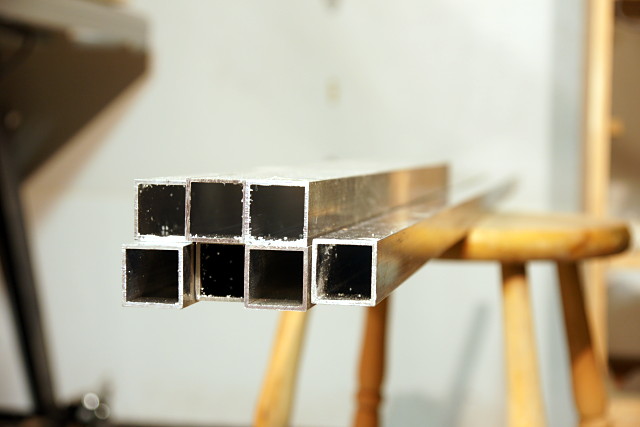

1″ square aluminum tubes:

  • 3x 48″ for the sides
  • 1x 53″ for the side piece that connects to the tow bar
  • 3x 24″ for the crosspieces

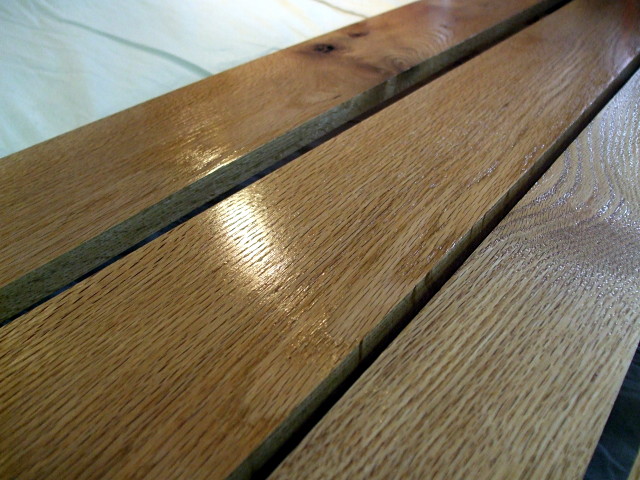

5x Red oak slats, each roughly 5/8″ x 3″ x 48″

3x Red oak crosspieces, each roughly 3/4″ x 1″ x 20″

50x pop rivets (could also have used bolts or self-tapping screws)

6x #10×1-1/2″ self-tapping screws

7x end caps for the aluminum bars

4x 160mm aluminum bar handles for front and rear tiedowns

Tools

Power driver (optional, but it’ll make your life much easier)

Drill press (optional)

Screwdriver, rivet tool, and/or wrench to drive your chosen fasteners

Gotchas

Building the kit is fairly straight-forward, but I’ll offer tips based on my experience:

  • The documentation with the kit recommends making the arm that connects to the tow bar 8-12″ longer than the others. About 3-5″ in addition to the supplied tow bar is more reasonable. Do a dry fit and make sure that your rear wheel has adequate clearance.

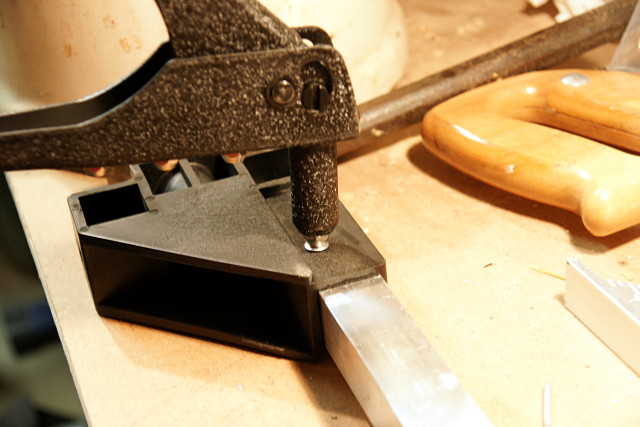

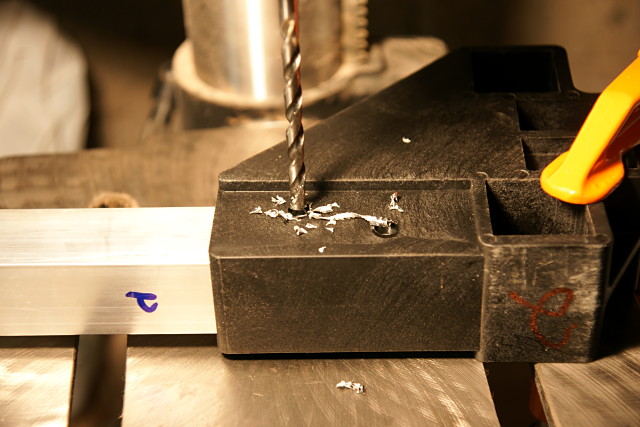

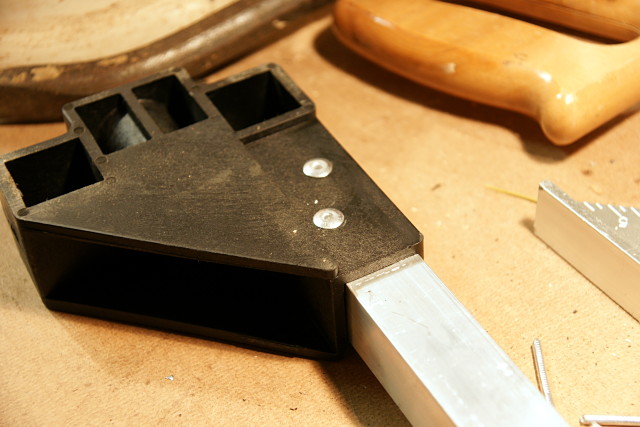

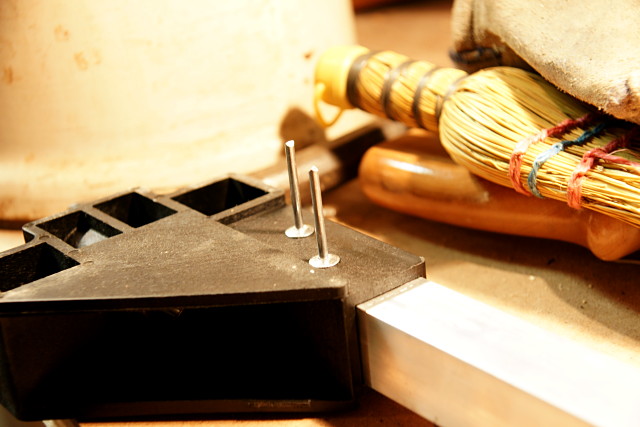

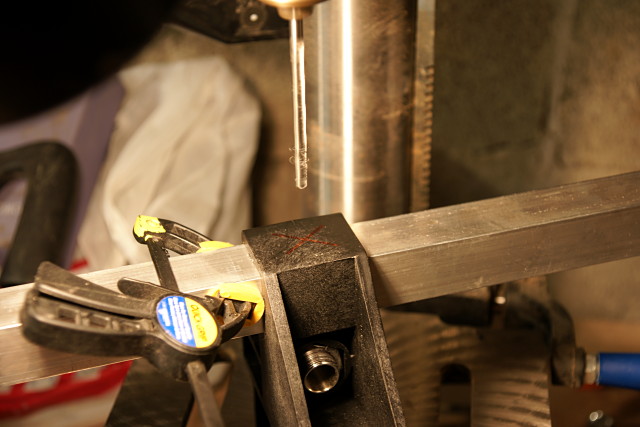

  • If you don’t have a drill press, just use #8 or #10 self-tapping screws instead of pop rivets. I wanted the cleaner look of rivets, but I’m not sure about how durable they’ll be. If they start shearing, I’ll replace them with self-tapping screws.
  • I had to grind down the tang on the tow bar supplied with the kit so that it would fit into the tubes that I bought.
  • 1″ square aluminum tubes should be available at any halfway decent hardware store. I got mine at my semi-local Metal Supermarket. They cut your order to length for free and I didn’t need to make any adjustments to their cuts.

Depending on the material and finishing touches you use, you can have a large custom cargo trailer for under $200. The kit saved me many hours I would have needed to spend in the shop if I was building the trailer from scratch.

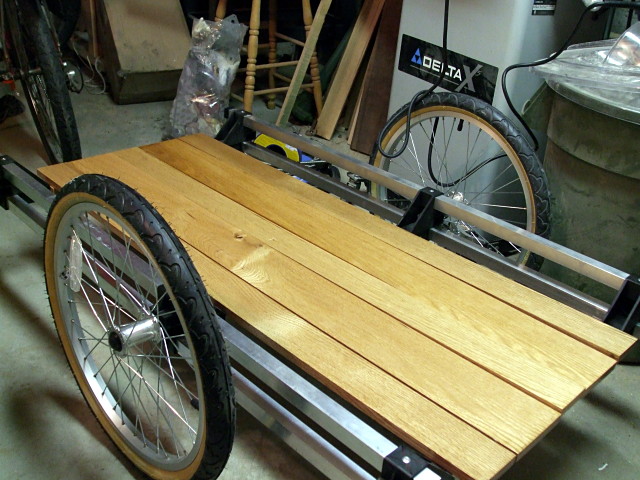

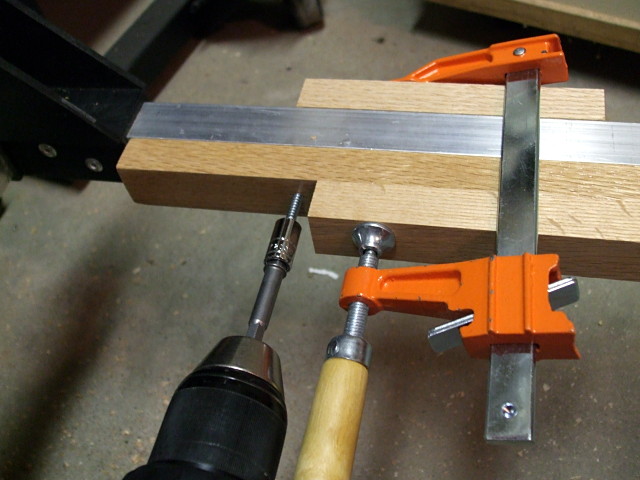

Here’s a partial gallery showing the building process and result.

28 Responses to “Custom bike trailer”

  1. Torontopoika says:

    Essentially, this project seems to be for the benefit of your feline companion(s?). Hauling litter features prominently.

    Inquiring minds want to know how many two-fours of beer this baby could handle.

    BTW, those are very good photo instructions. Even a ham-donny like me could follow them.

  2. Val Dodge says:

    Well, big boxes of cat litter are something I buy regularly that I can’t just lug home on foot or bungee onto my bike rack. After Pet Valu moved from 30 lb boxes to 40 lb boxes last year, I was only able to carry one box at a time on my Yak, which made it less practical to use a trailer rather than pop over with the car. It was definitely one of the primary requirements that convinced me to consider getting a bigger trailer.

    As for the beer, Wike gives their kit a carrying capacity of 150 lb. If a 2-4 weighs about 25 lb, that would be six cases. Perhaps more importantly, it can carry at least a two-month supply of Haagen Dazs.

  3. Ben says:

    It looks to be sturdier than the Burly trailer too

  4. I’m adding this to my cargo bike (Kona Ute). See any modifications that would need to be made given the different dimensions of longtails? Perhaps just tweak the tow bar?

    • Val Dodge says:

      Because it connects to the bike at the rear axle, the length of the tow bar is determined primarily by the size of your rear wheel. Looking at the Kona Ute, you may want a bit of extra clearance because of how far back the rear rack extends. The best approach is to do a dry fit and see what you prefer.

  5. Emitt D.Dixon says:

    I like that trailer, it looks like you could do some serious carrying with it.

    ttp://picasaweb.google.com/EDixon250/NewBoldGoldTrunk?feat=directlink

  6. Emitt D.Dixon says:

    Check this out.

  7. Scott Murray says:

    Hello Val,

    Very nice trailer, I don’t see where the cross members are. I understand where they are under the long slats U just can’t see them in any of the pictures.

    What do you think it weighs?

    Scott

    • Val Dodge says:

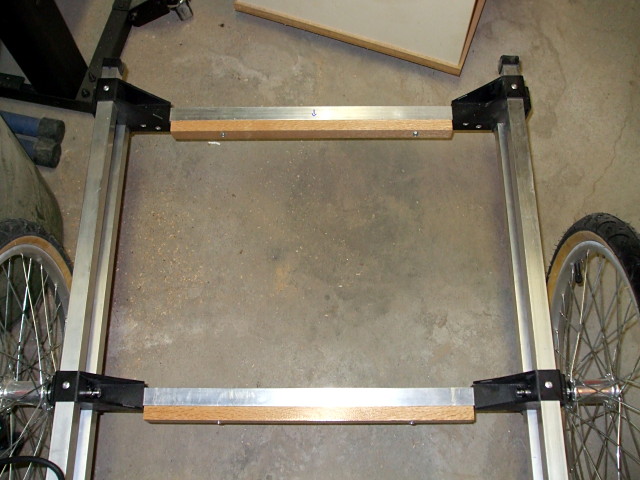

      The crosspieces are shown in two of the pictures toward the end (numbers 10 & 11), before the oak slats are fastened to them. The wooden pieces are attached to the aluminum bars with self-tapping screws.
